CNC Checkered Plate Milling Machine

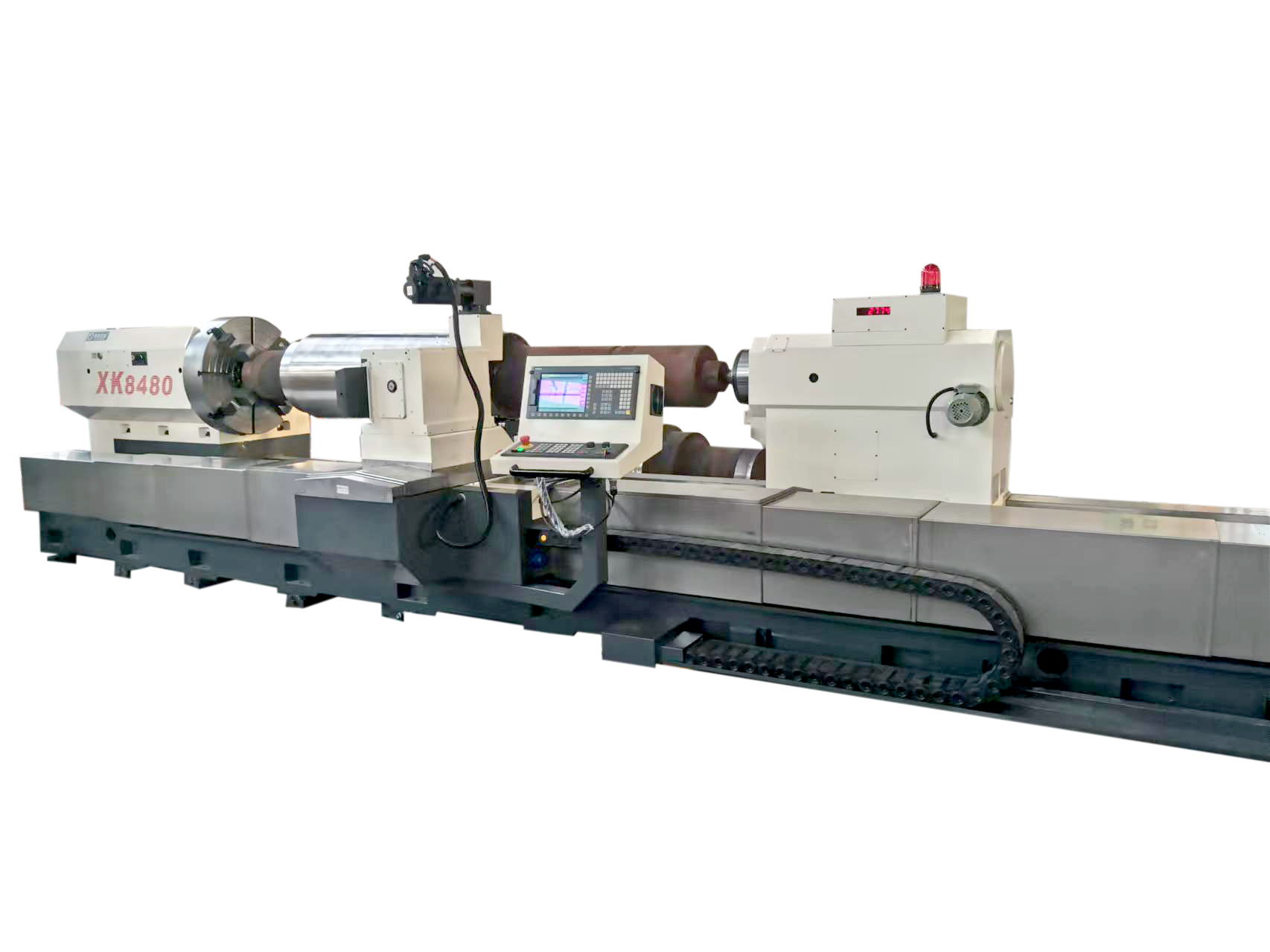

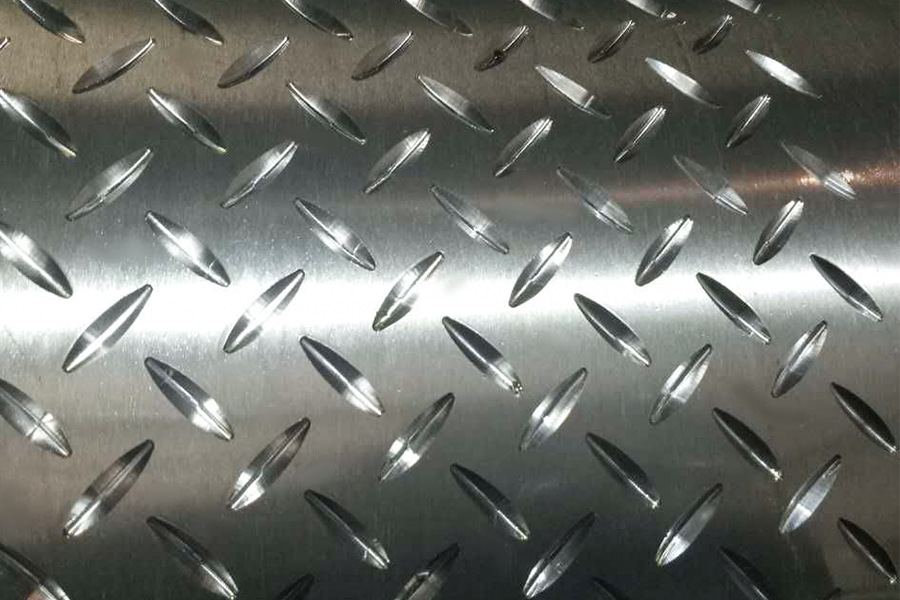

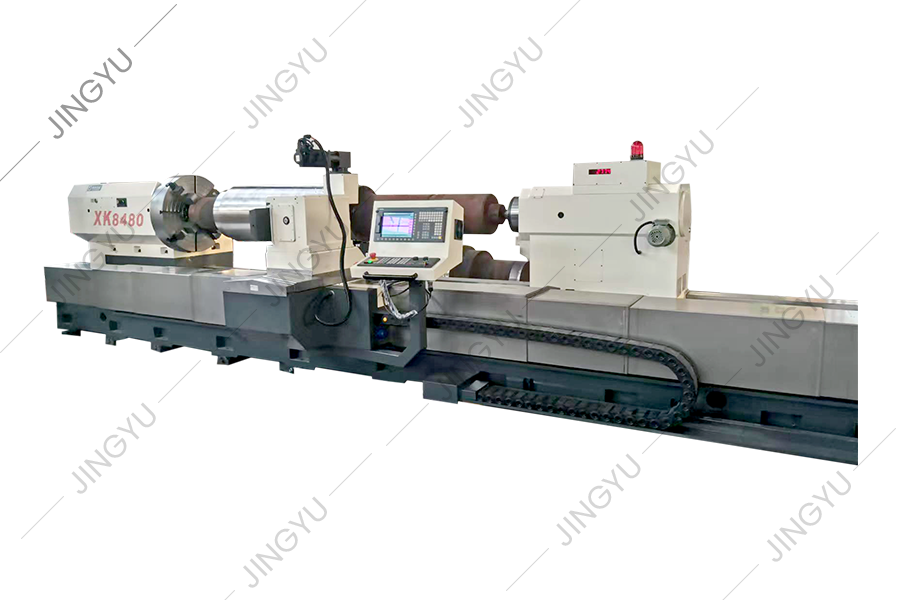

At present, pattern roll engraving at home and abroad generally adopts electrolysis method, ordinary horizontal milling machine milling and other processing methods. These two processing methods have disadvantages such as low production efficiency, long processing time, and easy tool breakage. Therefore, the traditional method of processing pattern rolls has always been a bottleneck in the steel industry. The combination of CNC technology and new pattern milling device is used to realize the CNC transformation of machine tools. The simulated trajectory method is used to mill the pattern rollers, so that all processing can be completed in one clamping, achieving convenient, fast and high-quality results. XK8480 CNC checkered plate roll milling machine is a new type of special CNC machine tool successfully developed by our company. It is equipped with a new Siemens CNC system. It is suitable for processing rolls with a diameter less than 800mm and a length less than 5500mm. It uses a fly-cutter to cut lentil shape, diamond shape, round bean shape, oval mixed shape pattern groove at high speed. This product complies with the GB/T3277-91 standard and can process checkered plate grooves with different rotation directions according to user requirements. It solves technical problems such as the engraving of checkered plate rolls and the checkered plate processing program module, successfully realizes the mass production of checkered plates, and achieves good economic benefits.
