Heavy Duty CNC Milling Machine

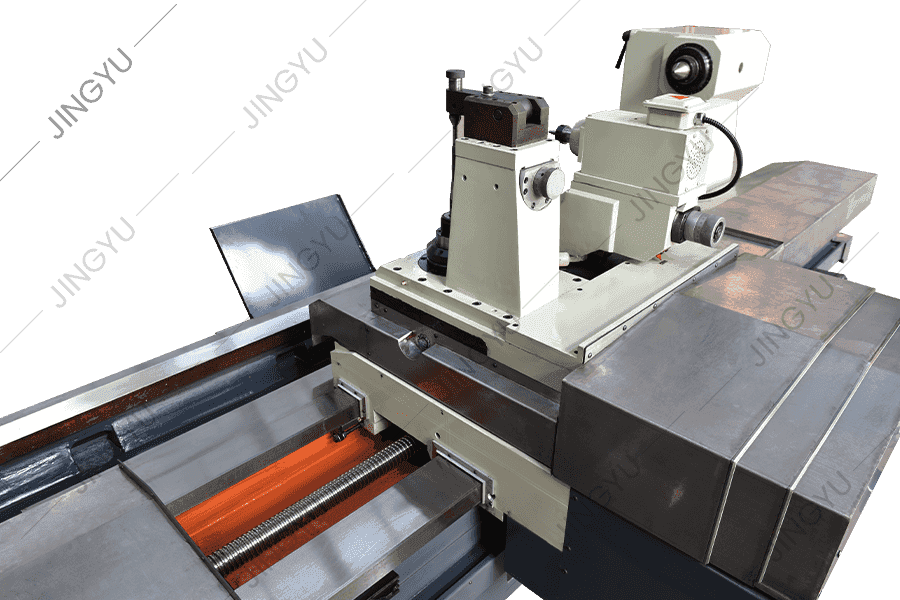

●This series of machine tools all adopt an integral 4-rail bed structure, and the reference guide rails adopt integral super-audio quenching, which ensures the high rigidity, high precision, and stability of the entire machine. The guiderail guard plays a full protective role.
●The large diameter H40 spindle end of the flying tool spindle can meet the requirements of machining 60mm equal height ribs.

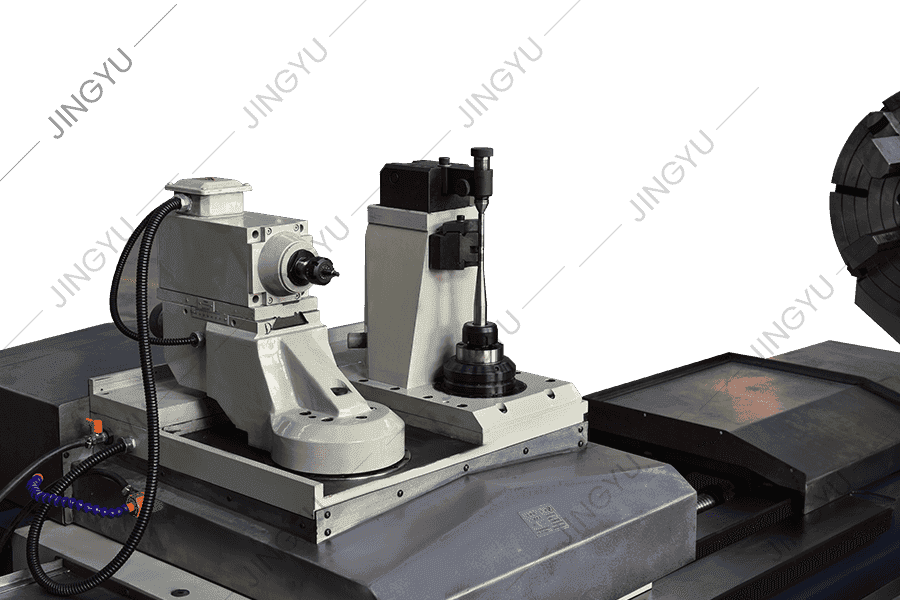

●The engraving and milling head adopts a high-precision turntable bearing structure, which solves the rigidity problem of the milling head support and greatly improves the sensitivity and positioning accuracy in the rotation direction.
●The engraving and milling spindle is directly driven by a stepless speed-regulated electric spindle with a power of 2.2KW and a maximum speed of 8,000 rpm. it can be engraved on high hard materials.
●The machine tool is equipped with a 5-axis numerical control system, and the rotary milling head and swing engraving milling head are configured side by side for centralized control. The operator only needs to complete a simple processing mode selection on the CNC system, and the machine tool automatically realizes the function conversion without the need for manual mechanical conversion.
