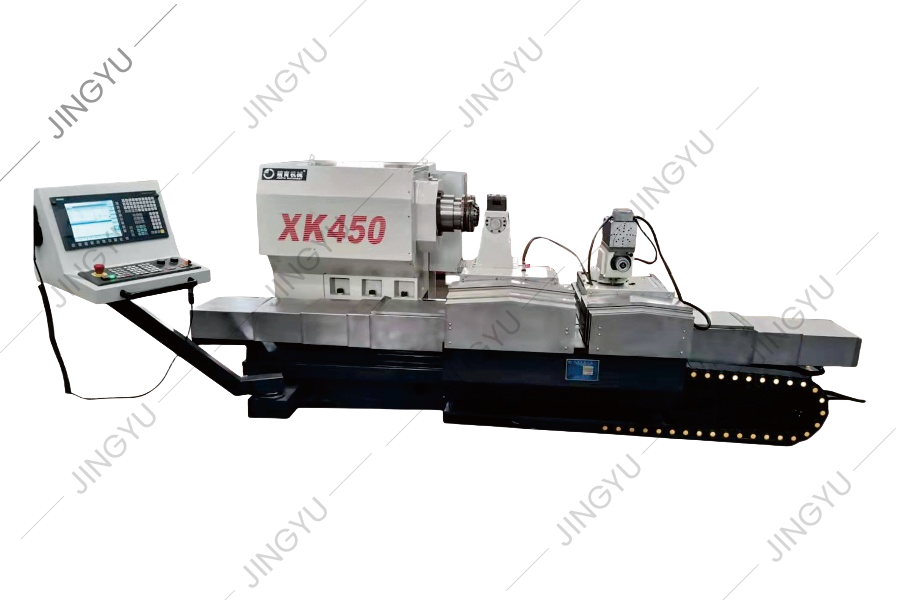

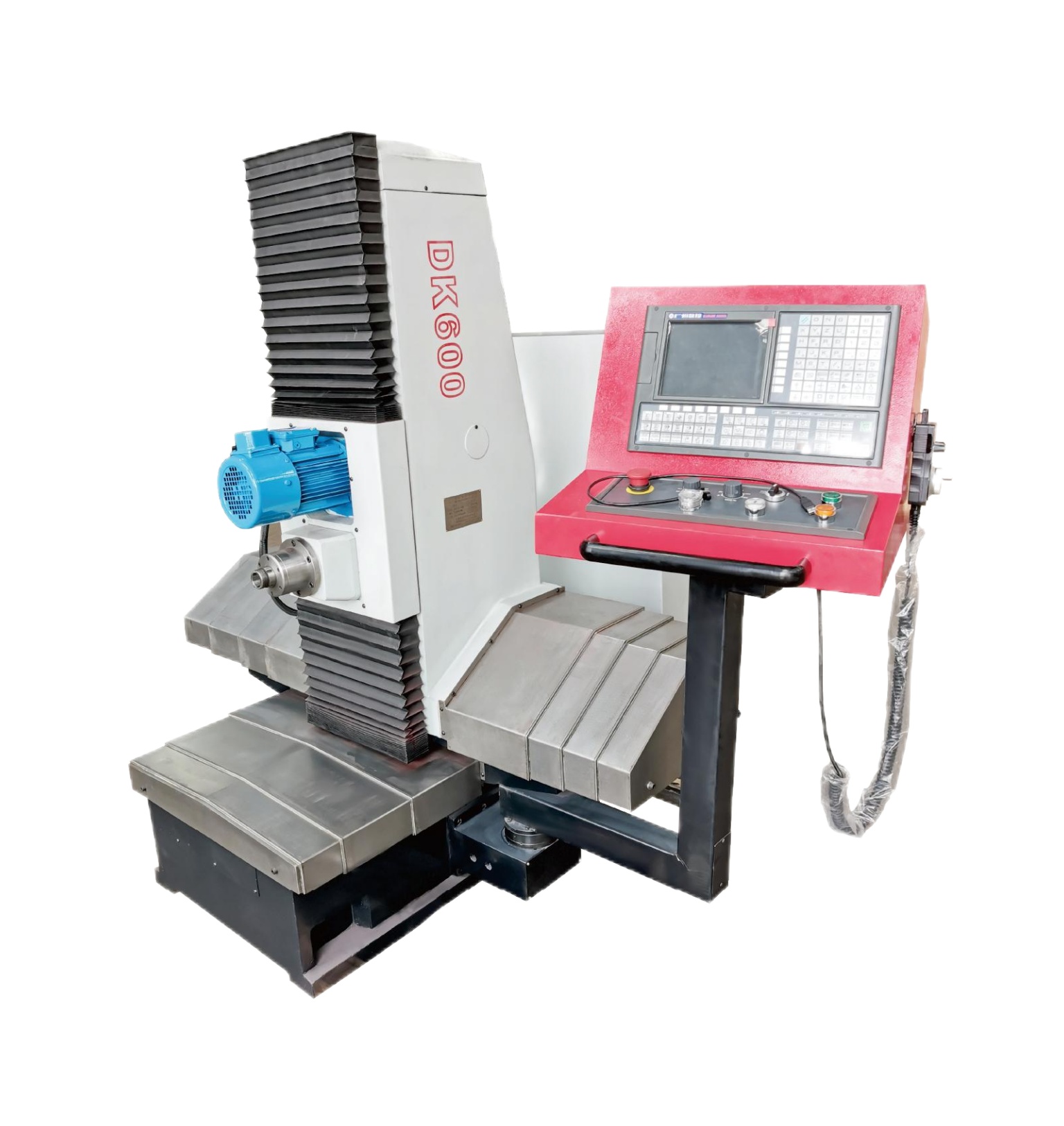

CNC Roll Ring Milling Machine

●This series of machine tools all adopt an integral 4-rail bed structure, and the reference rail adopts integral supersonic frequency quenching, which prominently guarantees the high rigidity, high precision, and stability of the whole machine. The machine tool rail adopts a stainless steel guard for full protection, which effectively prolongs the service life of the machine tool rail.

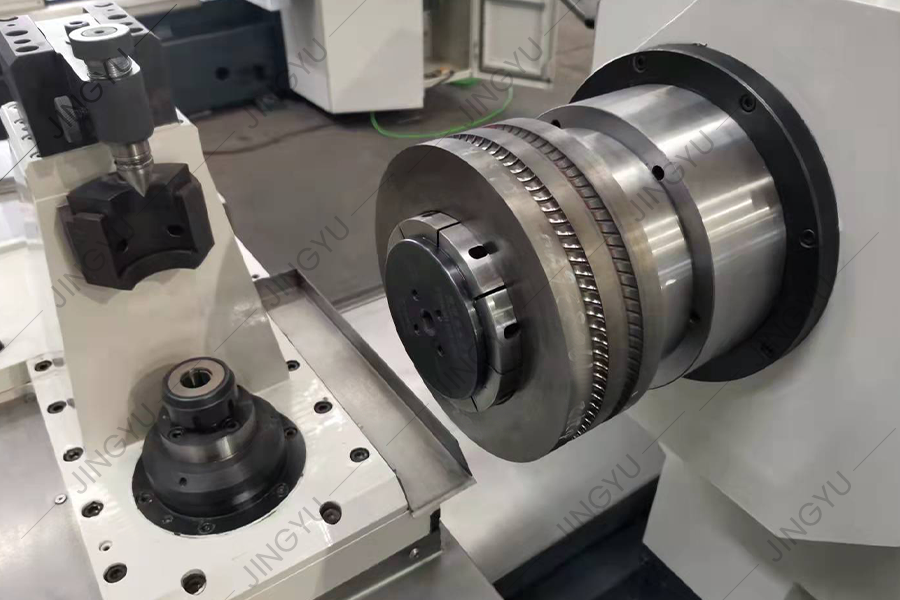

●The roll ring adopts a tightening sleeve assembly structure, which is convenient and quick. The expanding mandrel is installed on the headstock spindle. Set the roll ring on the expanding mandrel, tighten the locking screw at the end of the expanding mandrel with an Allen wrench, and the self-centering installation and tightening of the roll ring to be processed on the machine tool can be completed.
●The lateral moving guide rail of the flying cutter milling head component adopts a high-precision heavy-duty linear cylindrical rolling guide rail pair support. It ensures the high-precision and high-rigidity requirements of the feed movement during flying cutter processing.

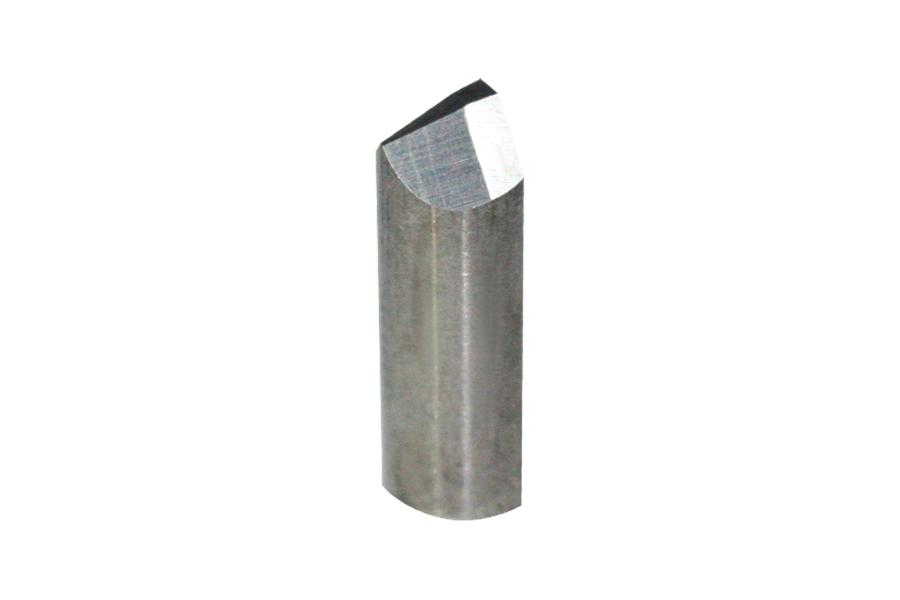

The engraving and milling head adopts a high-precision turntable bearing structure, which solves the rigidity problem of the milling head support and greatly improves the sensitivity and positioning accuracy of the rotation direction. The milling head spindle adopts a variable frequency stepless speed regulation electric spindle with a power of 2.2KW and a maximum speed of 8000rpm. Customers can choose the appropriate speed to complete the engraving needs according to the needs of different materials (the speed of the alloy engraving cutter is 3000r/min, and the speed of the CVD engraving cutter is 7000r/min).

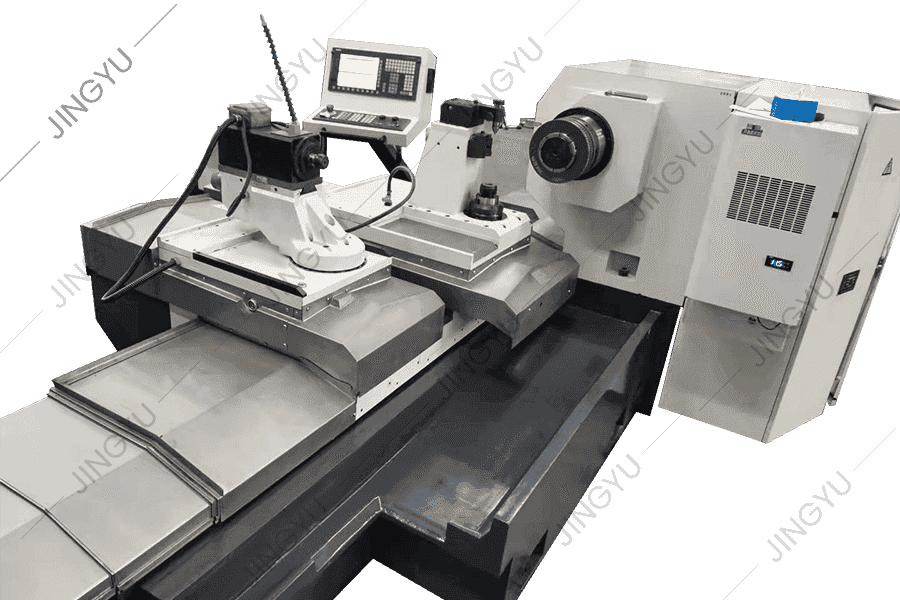

●The rotary milling head and the swing milling head are independently configured and controlled (no mechanical or electrical conversion is required), and there is no interference between the functional components of the machine tool. The roller can be fully processed with one clamping.

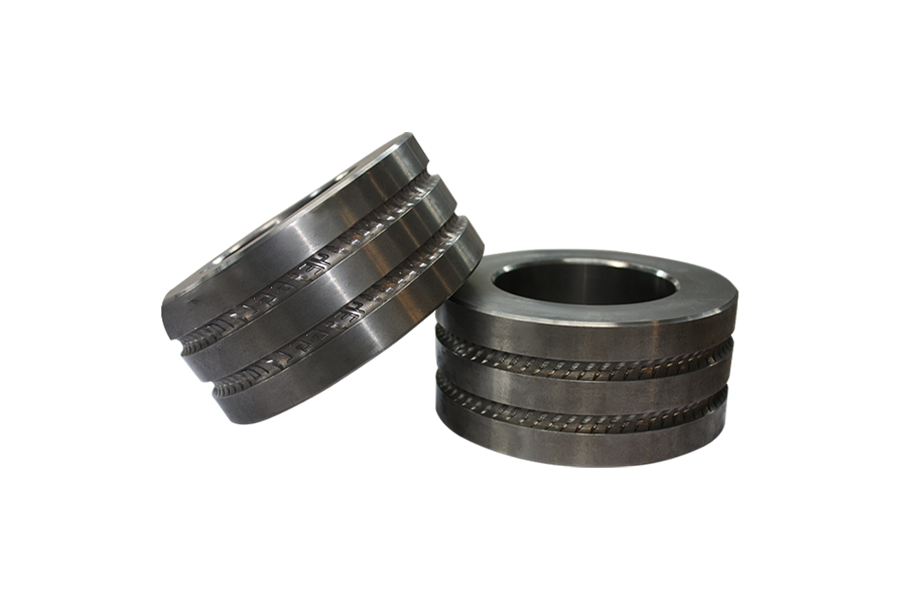

After the initial tool setting is completed, the cross-rib groove fly cutter milling and character and pattern milling can be completed in one program.
