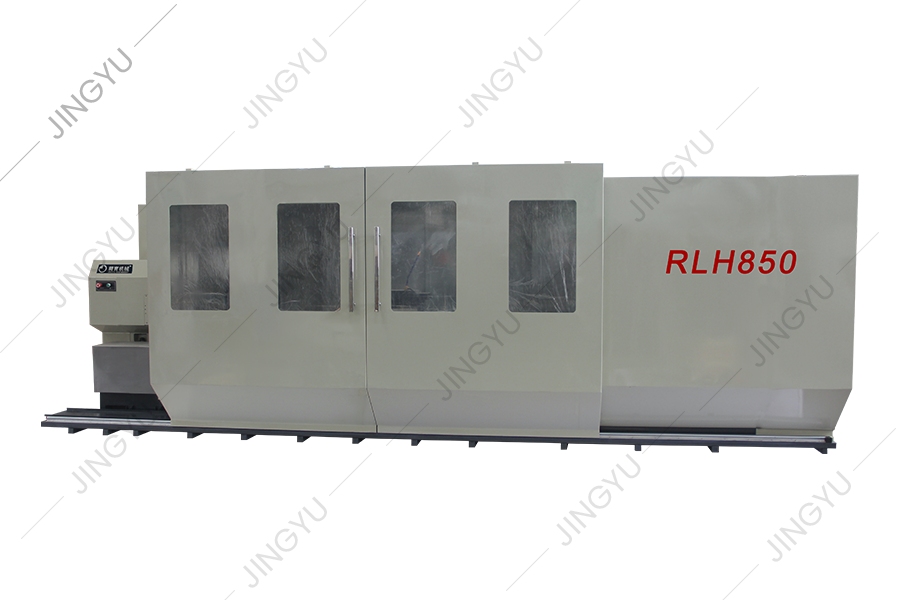

Laser Machining Center

This machine tool is a new type of CNC roll grooving machine tool developed based on the company's CNC roll milling machine series and after full research and analysis of the advantages and disadvantages of similar products at home and abroad. It is suitable for processing rolls with a diameter less than 900mm and a length less than 2500mm. It can automatically create grooves on the roll surface to meet the market's processing needs for one-way grooves or two-way cross grooves.

Get A Quote

PREV：EDM Diamond Wheel Dressing Machine NEXT：CNC Milling Cutter Sharpening Machine

Description
Technical Parameters
Contact Us

●The original LDM 3000 fiber-coupled semiconductor laser system is used, with a power conversion efficiency of up to 45% and a trouble-free operation time of up to 99%. It is equipped with a time-sharing two-way electronic optical brake and connected to the laser cladding processing head and quenching processing head through an optical fiber with a core diameter of 400um, which is safe and reliable.
●The four-axis machine tool used in this system is a high-precision, high-sensitivity machine tool produced by our company, including the machine tool body, machine tool control cabinet, control system, power supply cable, and voltage-stabilized power supply. The protection adopts a fully enclosed structure, which is safe and practical, as well as novel and beautiful.

Index	Unit	RLH850
Cutting mode & function		Laser processing, laser cladding, welding, quenching, roughening
Max. workpiece diameter	mm	Φ850(customizable)
Max. workpiece length	mm	3000(customizable)
Spindle speed	rpm	1~800(stepless speed regulation)
Main motor power	kW	11(servo spindle motor)
X, Y, Z axis fast-moving speed	mm/min	12000
X, Y, and Z axis effective travel	mm	3200×400×500
Min. feed unit	mm	0.001
Control system		Siemens 828D
Note: Other CNC systems can be customized according to customers' special needs.
