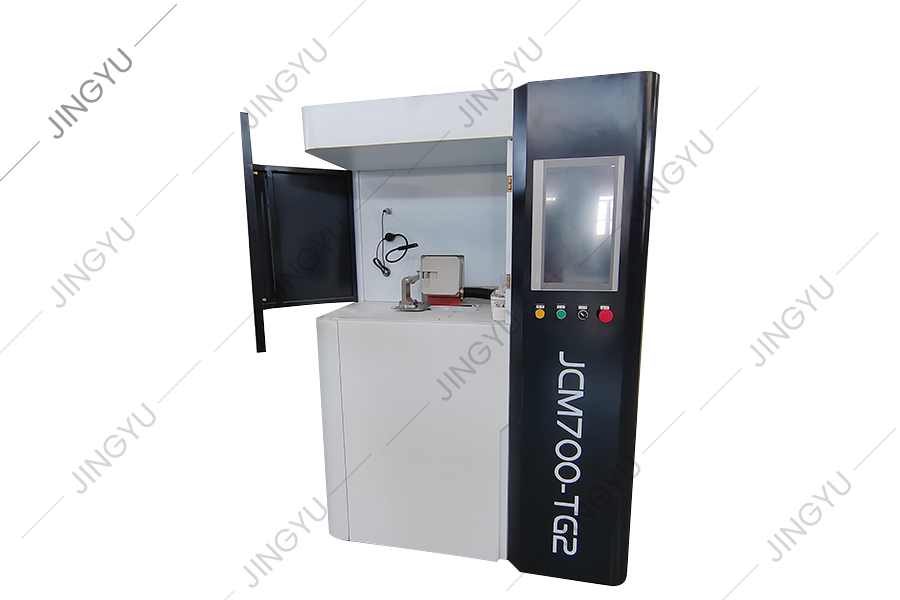

CNC Milling Cutter Sharpening Machine

This machine is mainly used for grinding and repairing the milling cutter of roll threaded cross rib, which can easily repair and grind the edge of rebar milling cutter of national standard, Japanese standard, British standard, and American standard.

Get A Quote

PREV：Laser Machining Center NEXT：CNC Roll Engraving Machine

Description
Technical Parameters
Contact Us

●Parameter setting: various control parameters related to processing and operation can be set to achieve the best processing effect.
●IO settings: You can easily set the physical port used by each IO function.
●Manual operation: It can realize high and low-speed manual, inching, return to program zero, return to mechanical zero, and other operations.
●Tool shape modification: The current tool shape can be edited and modified.
●Automatic motion: Automatic tool grinding.
●Return to origin: Return each motion axis to the mechanical origin.

Index	Unit	JCM700-TG2
Thread milling cutter diameter	mm	Φ3.2-8
Power supply		AC380/220V 5KVA 50/60HZ
Position detection		High precision contact probe detection
Spindle speed	rpm	1500-6000
Spindle grinding wheel		Powerful grooving ultra-fine ceramic PCD grinding wheel
Grinding wheel spindle motor power	kW	2.2
Max. linear speed of grinding wheel	m/s	47
Cooling method		Powerful dust removal air cooling
Guide-rail oil		ISO VG32
X-axis ball screw direct drive	mm	Travel-200 Position control resolution-0.001
Y-axis ball screw direct drive	mm	Travel-200 Position control resolution-0.001
